Exploration & Workover RigsExploration & Workover RigsXDR's Electric Workover Rig Package — a fully electric, road-legal, zone-rated workover system engineered for European well servicing. All the power of a diesel, all the time — constant torque from the electric drive — with significantly reduced emissions, lower noise, and no transport permits. On the road in approximately 30 minutes.
XDR — Exploration Drill Rigs — has designed and built workover rigs since 2007, with a dedicated engineering and manufacturing base. The Electric Workover Rig Package is trailer-mounted, rapid to rig up, and fully electric — rig, catwalk and mud trailer as one integrated system.
At its heart is a single 550 kW electric motor, VFD-controlled — delivering all the power of a large diesel unit, available all the time, with smooth constant torque across the whole range and significantly reduced emissions, low noise, and extremely low maintenance — a single wire-rope drill line with no travelling blocks means far fewer wearing parts. Drive motors power down automatically when idle, and the system recovers energy when lowering into the wellbore. Well servicing that fits a decarbonisation strategy rather than fighting it.
Engineered for safety
Every package is built to SIL2-confirmed safety, achieving SIL3 performance through safety stacking — and runs on XDR Xenon, the rig telemetry and control operating system. It integrates the plant so a smaller crew can run it, streams live telemetry to operators and well owners, logs 12 months of black-box data, and flags maintenance before it bites. SCADA-ready and fully integratable, with a driller HMI customisable to your requirements.
Achieved through safety stacking; designed to international standards with full SIL analysis.
Live telemetry & remote diagnostics, 12-month black-box logging, predictive maintenance — integratable into your systems, HMI to your spec.
Emergency brakes, overpull protection, certified man-riding floor, real-time mast-zone monitoring and controlled mast lowering.
API 4F certifies a mast for vertical and wind loads — but not the lateral side-pull and off-axis forces that quietly shift a rig's centre of gravity and lead to rollover. IntelliBeam™ is XDR's patented stability-monitoring system. Load cells in the support pads under each rear jack leg measure the real load going into the ground; the PLC computes the lateral centre of gravity continuously and shows it on the driller's screen — with normal, caution and "do-not-go-further" zones — so the crew sees instability developing long before it becomes dangerous. Wind effects are already built into the readings.

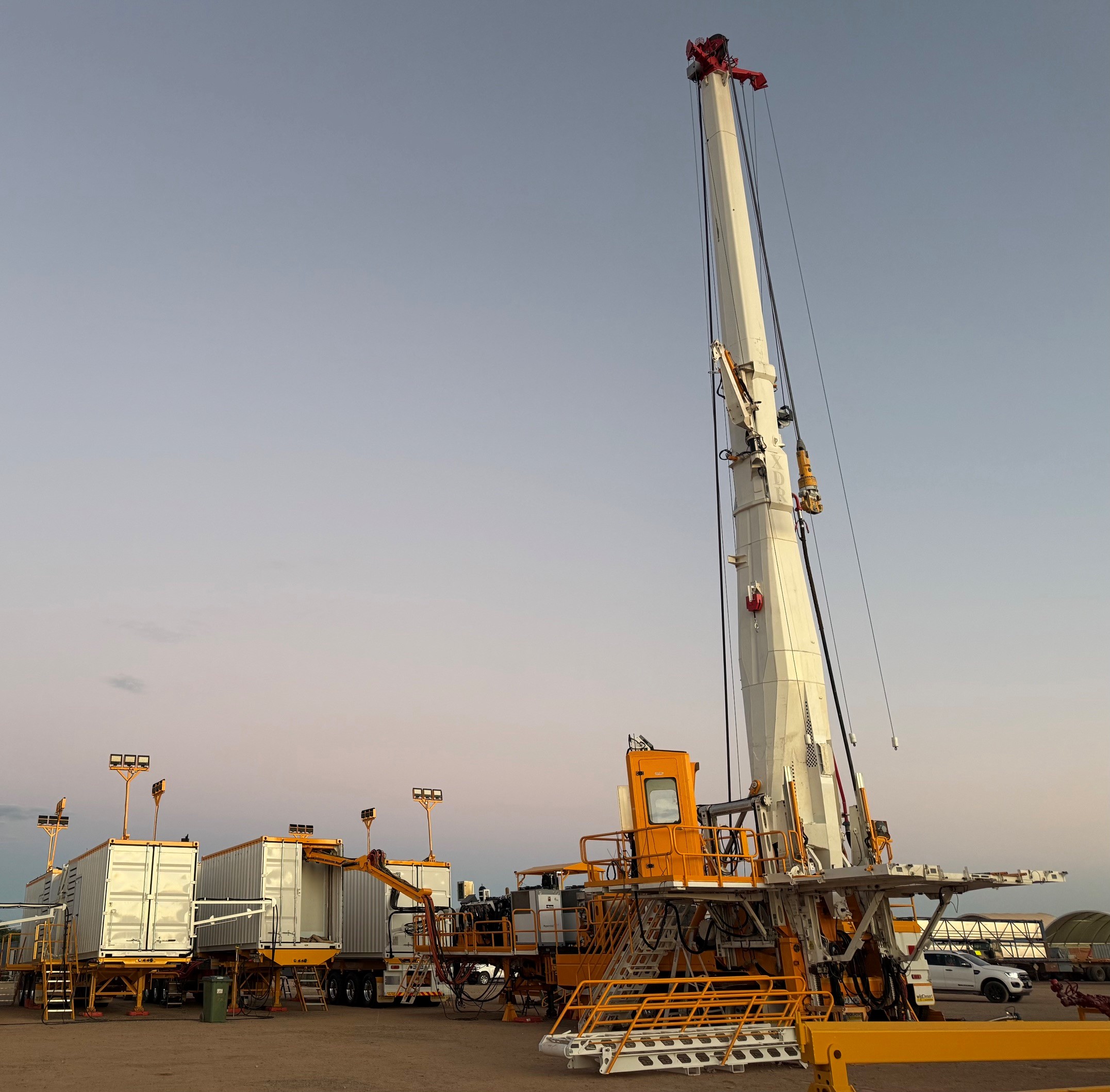

A complete, trailer-mounted Plug & Abandon and well-servicing system — electric rig, electric catwalk, and mud trailer — each road-gauge compliant and built to work as one.

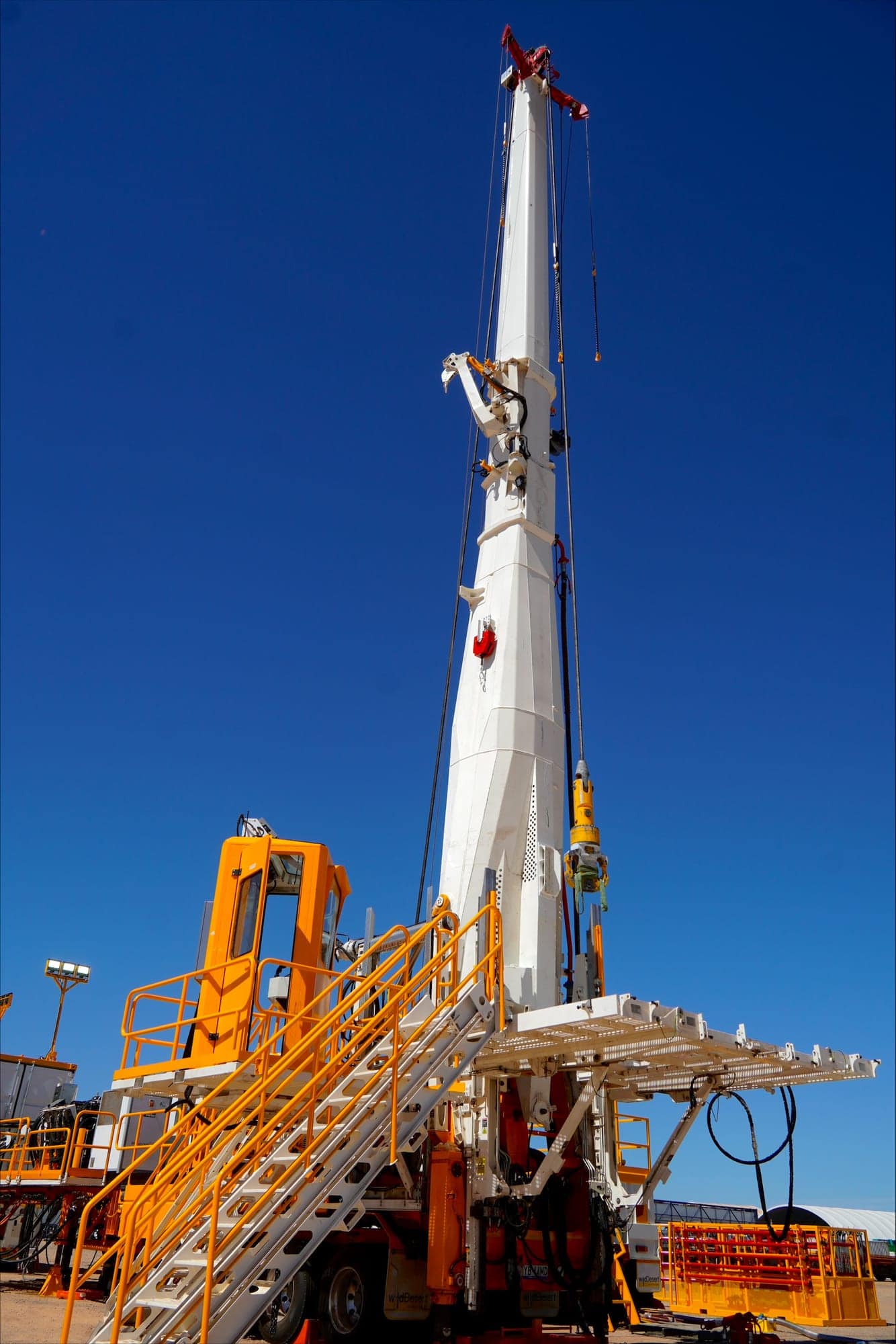

550 kW · 160,000 lb

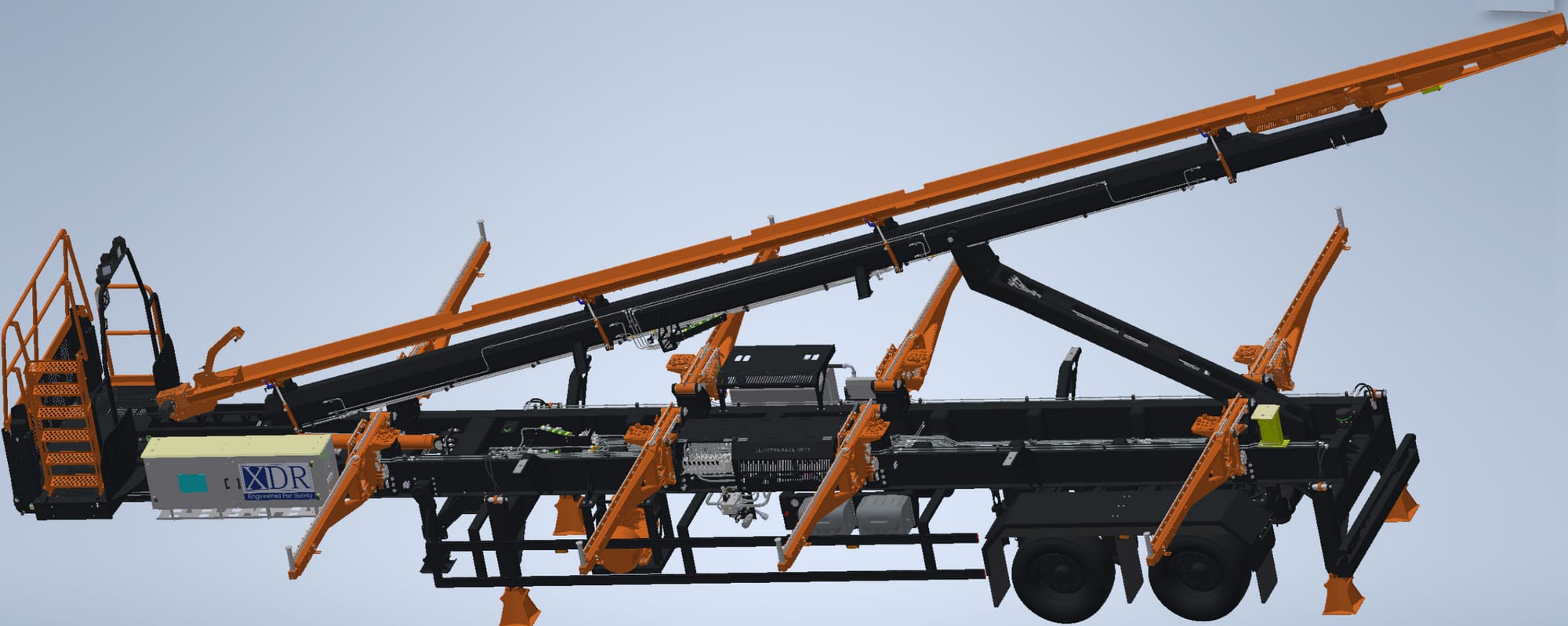

Electric tubular handling

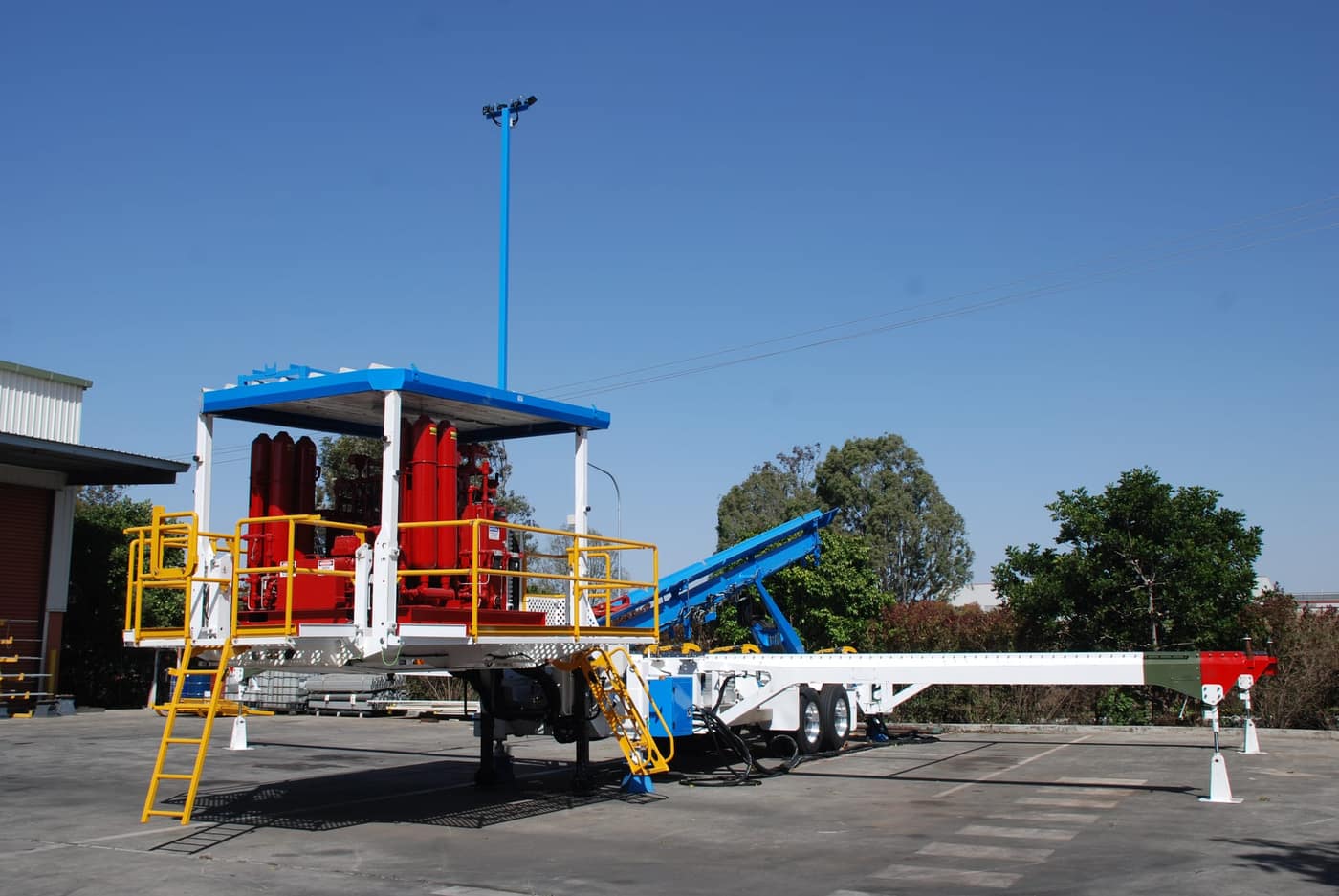

Compact tubular handling

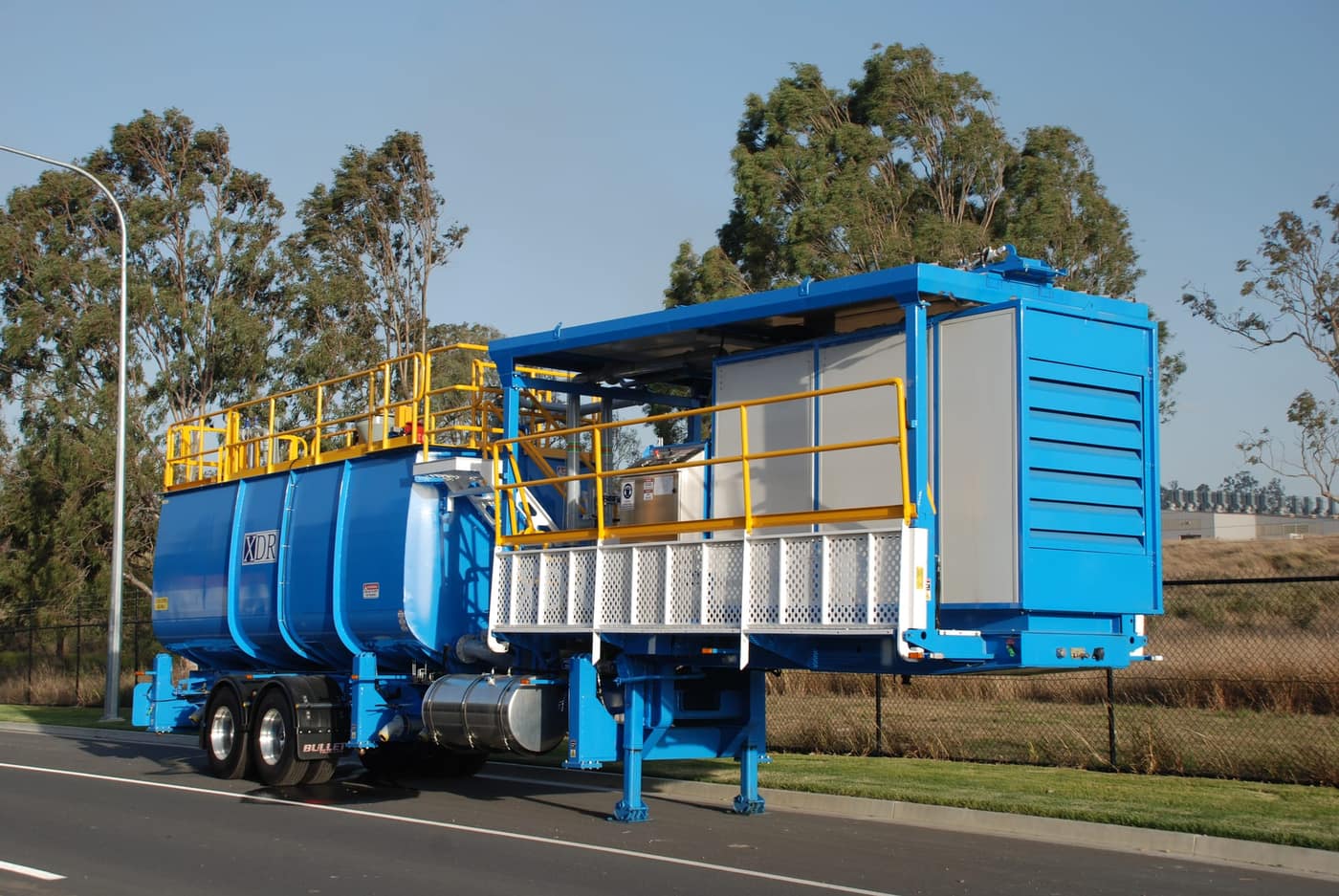

Integrated fluid system
Configured to suit MOL well programmes — supplied as a complete package.
